Automatic CNC three-axis roll bending machine (40T)

The machine has high strength and reliable mechanical strength and rigidity, and can operate stably and reliably in various complex environments.

Equipment advantages

The equipment is widely used in building doors and windows curtain wall, automobile industry, high-speed rail, aerospace, decoration, ships, tunnels and bridges, advertising and other industries
Bending and forming of various standard and non-standard metal profiles, such as U-shaped, C- shaped, circular, oval, multi-radius forming, etc.
The machine adopts automatic numerical control system and special bending forming software, which is simple and convenient to operate.
CNC hydraulic system is adopted to ensure positioning accuracy.
According to the springback data of profile forming, it is compensated by the line system and has high processing accuracy.

Device Configuration

1 Control system: Siemens PLC controller (good stability)
2 Operation screen: Siemens 10-inch touch screen (easy to use)
3 Hydraulic system:Japan Yuken
4 Reducer: Taiwan Aimerxin
5 Grating ruler: Guangzhou Xinhe, domestic famous brand
6 Electrical components: France Schneider
7 Detection switch and limit switch: Taiwan Jiachun
8 top axis movement trajectory is a straight "work" shape structure (smooth movement)
9 The overall sheet metal of the device is anti-static spray plastic, and the rack is galvanized pipe welded and does not rust
10 The machine is equipped with anti-tilt support to prevent the shaft from tilting.Performance pledge

 Aluminum window door profile：

1. Suitable for Suitable for bridge aluminum, aluminum-plastic aluminum profiles, aluminum wrapped wood, curtain walls, frame materials and other profiles that can be bent forward and sideways

2. Can be bent in U/C/S. circular, elliptical, square, spiral, irregular and other shapese aluminum, aluminum-plastic aluminum profiles, aluminum wrapped wood, curtain walls, frame materials and other profiles that can be bent forward and sideways Can be bent in U/C/S. circular, elliptical, square, spiral, irregular and other shapes

Automotive aluminum profile：

Suitable for bending profiles such as car bumpers, RV windows, dynamic door profiles, electric vehicle frames, and truck glass grooves.

Bending machine:

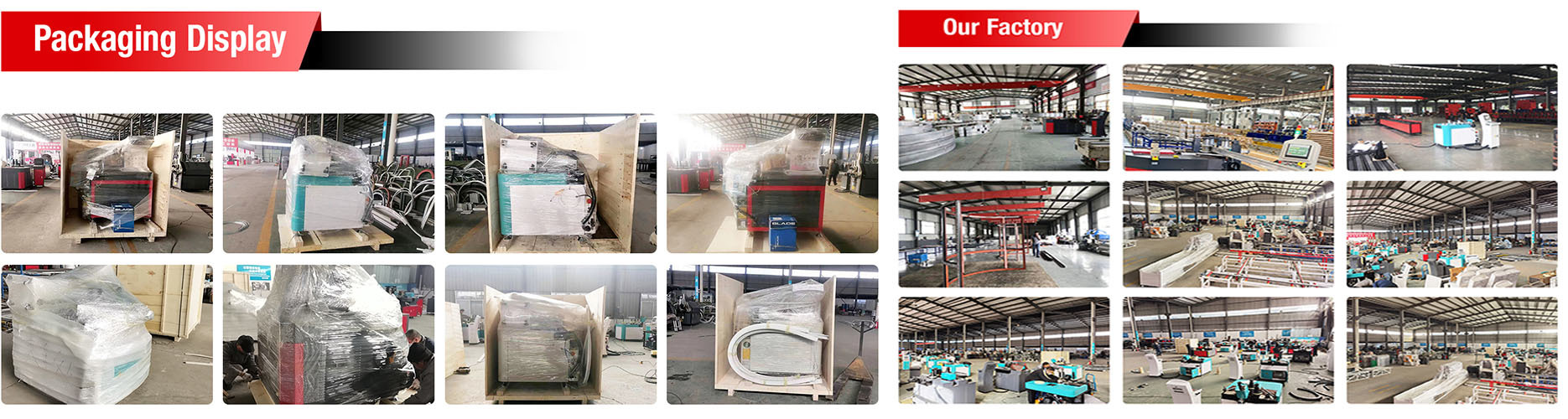

Packaging and Shipping

In the whole order process, fully cooperate with there quiremenls of customers.We can support your special requirements, such
as packing, loading.coating,free samples and so on.

We have CE ISO certification
There are still many professional certificates available  I participate in various exhibitions every year

FAQ:

1. Q: Are you a manufacturer or trading company?
     A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.
2. Q:Where is the nearest airport to your company?
     A: JINAN Airport.
3. Q: How to choose the pipe/tube bending machines?
     A: You have to inform us following details:
- Pipe Outdiameter Range
- Wall thickness range
- Bending Radius Value
- The pipe material
- Bends Number on one pipe
- The drawings if possible
4. Q: What certificate do you have?
     A: We have both ISO and CE certificate.
5. Q:How about your service?
     A: Before Sales Serive:
1. We will help our customer confirm the right model according to the offered pipe inforamtion.
2. Welcome to visit our factory to see our machine and our workshop before you place an order.
