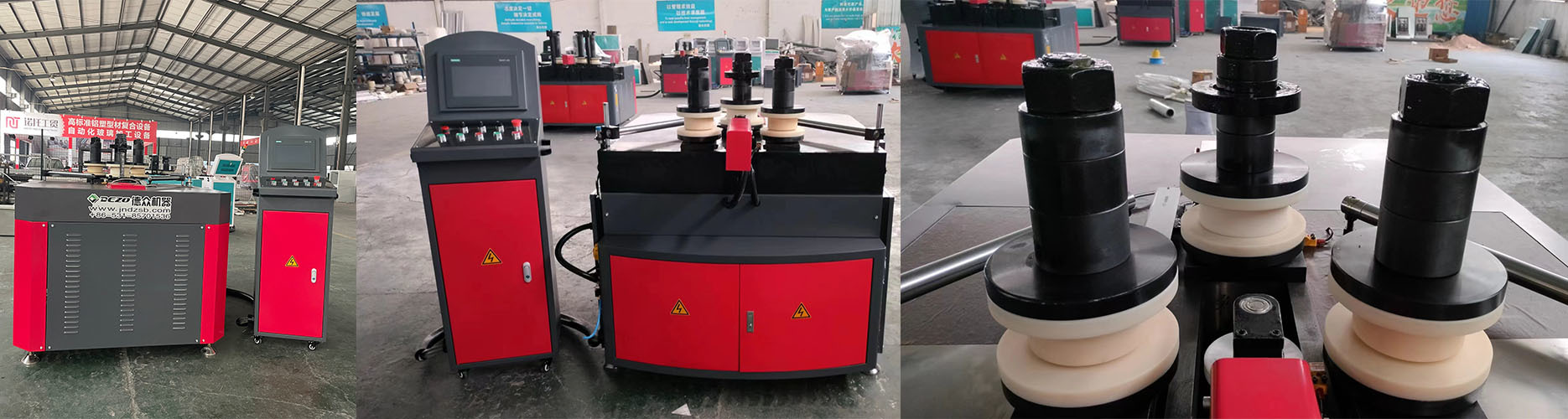

Automatic CNC four-axis roll bending machine (frequency conversion type or high with double servo type)

1. Suitable for bending and arc processing of various metal profiles or special-shaped profiles (aluminum alloy door and window profiles, insulated bridge profiles).
2.The machine adopts an industrial computer control system and specialized bending software, with simple and convenient operation and accurate positioning.
3. can perform system compensation based on the rebound data of the profile, with high processing accuracy.
4. The operation screen adopts a fifteen inch display screen (easy to use): it adopts the German Rexroth hydraulic system, and the oil cylinder seal ring is an imported seal (long service life); This machine has been equipped with 46 # anti eagle hydraulic oil before leaving the factory, and its product performance meets the European advanced CNC arc machine standard.
5. The trajectory of the top axis is a straight "I" - shaped structure (moving smoothly), and the top axis is equipped with an anti tilt bracket to prevent the axis from tilting; The overall sheet metal of the equipment is anti-static spray coated, and the frame is made of galvanized pipe welded without rusting.
5. The trajectory of the top axis is a straight "I" - shaped structure (moving smoothly), and the top axis is equipped with an anti tilt bracket to prevent the axis from tilting; The overall sheet metal of the equipment is anti-static spray coated, and the frame is made of galvanized pipe welded without rusting.

Equipment advantages

This machine is widely used in building doors and windows curtain wall, automobile industry, decoration, high-speed rail, aerospace, outdoor advertising and other industries in the standard and non
Bending and forming of standard metal profiles, such as S-bend, U-shaped, C- shaped, circular, oval and multi-radius forming of the same profile.
According to the profile bending shape requirements, can be convenient for three-axis and four-axis conversion.
The machine adopts automatic numerical control system and special bending forming software, which is simple and convenient to operate.
CNC hydraulic system is adopted to ensure positioning accuracy.
According to the springback data of profile forming, it is compensated by the line system and has high processing accuracy.

Device Configuration

1 Control system: Siemens PLC controller (good stability)
2 Operation screen: Siemens 10-inch touch screen (easy to use)
3 Hydraulic system:Japan Yuken
4 Reducer: Taiwan Aimerxin
5 Grating ruler: Guangzhou Xinhe, domestic famous brand
6 Electrical components: France Schneider
7 Detection switch and limit switch: Taiwan Jiachun
8 top axis movement trajectory is a straight "work" shape structure (smooth movement)
9 The overall sheet metal of the device is anti-static spray plastic, and the rack is galvanized pipe welded and does not rust
10 The machine is equipped with anti-tilt support to prevent the shaft from tilting.Performance pledge

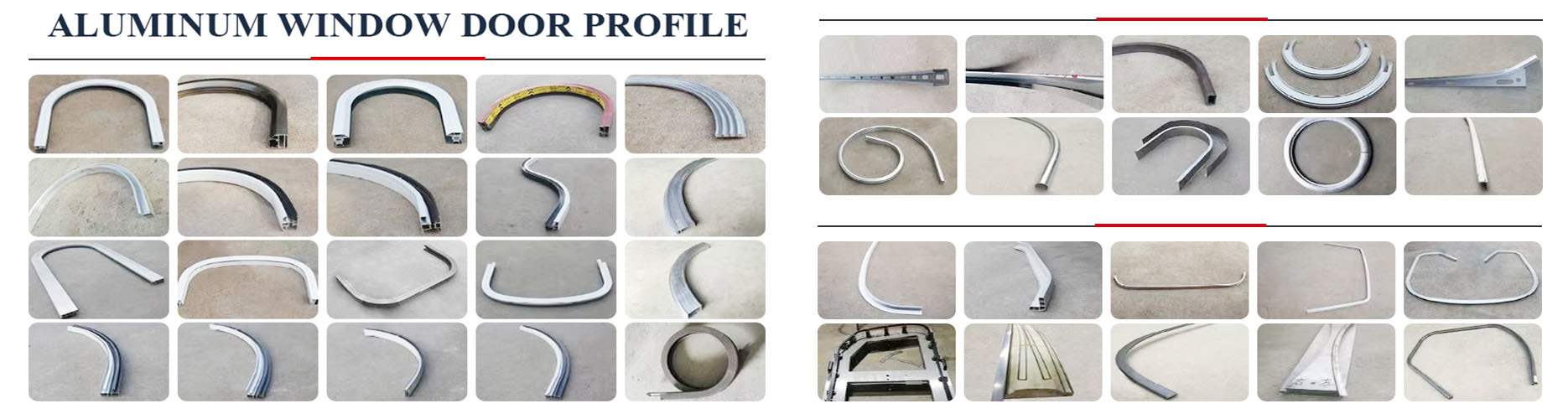

 Aluminum window door profile：

1. Suitable for Suitable for bridge aluminum, aluminum-plastic aluminum profiles, aluminum wrapped wood, curtain walls, frame materials and other profiles that can be bent forward and sideways

2. Can be bent in U/C/S. circular, elliptical, square, spiral, irregular and other shapese aluminum, aluminum-plastic aluminum profiles, aluminum wrapped wood, curtain walls, frame materials and other profiles that can be bent forward and sideways Can be bent in U/C/S. circular, elliptical, square, spiral, irregular and other shapes

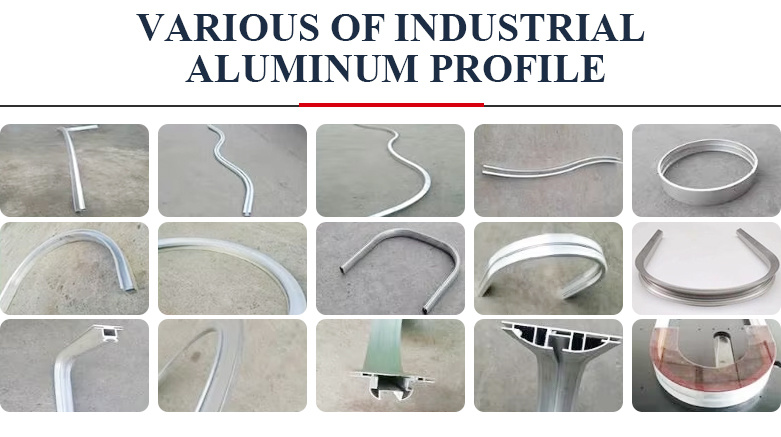

Automotive aluminum profile：

Suitable for bending profiles such as car bumpers, RV windows, dynamic door profiles, electric vehicle frames, and truck glass grooves.

Bending machine:

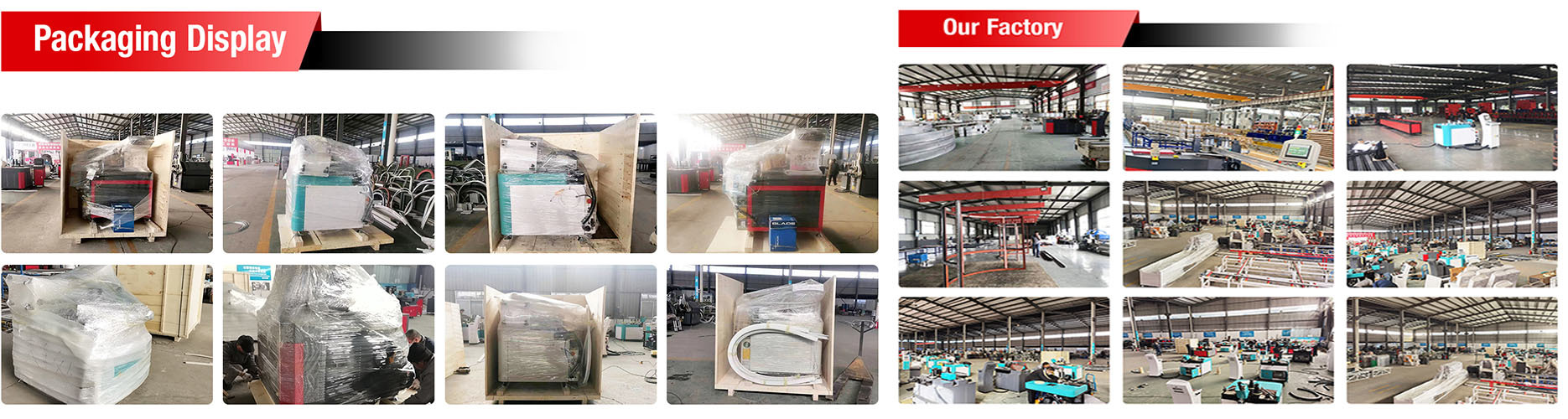

Packaging and Shipping

In the whole order process, fully cooperate with there quiremenls of customers.We can support your special requirements, such
as packing, loading.coating,free samples and so on.

We have CE ISO certification
There are still many professional certificates available  I participate in various exhibitions every year

FAQ:

1. Q: Are you a manufacturer or trading company?
     A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.
2. Q:Where is the nearest airport to your company?
     A: JINAN Airport.
3. Q: How to choose the pipe/tube bending machines?
     A: You have to inform us following details:
- Pipe Outdiameter Range
- Wall thickness range
- Bending Radius Value
- The pipe material
- Bends Number on one pipe
- The drawings if possible
4. Q: What certificate do you have?
     A: We have both ISO and CE certificate.
5. Q:How about your service?
     A: Before Sales Serive:
1. We will help our customer confirm the right model according to the offered pipe inforamtion.
2. Welcome to visit our factory to see our machine and our workshop before you place an order.
