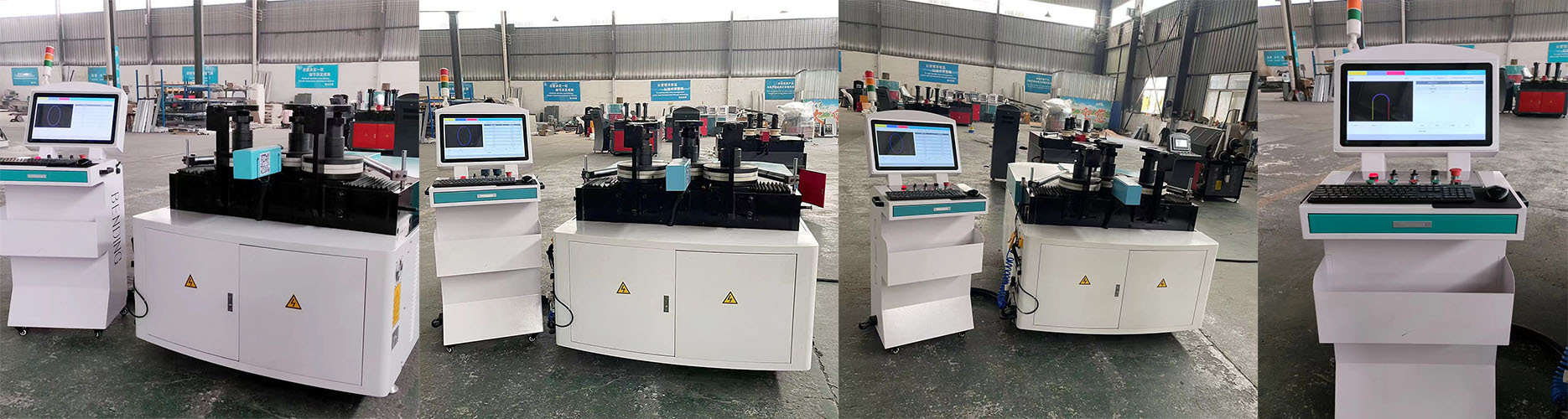

Industrial computer type automatic CNC roll bending machine (40T)
hiddenValue
- PRODUCT DETAILS
-
Equipment advantages
Suitable for all kinds of metal profiles or profiles (aluminum alloy door and window profiles, thermal insulation bridge profiles) arc processing operations.
The machine adopts automatic numerical control system and special arc bending software, simple and convenient operation, the machine adopts horizontal bending, suitable for long material or large shape (heavy material)
According to the rebound data of the profile, the system can be compensated, and the processing accuracy is high.
Adopt numerical control hydraulic system to ensure accurate positioning.
Its product performance to the European advanced CNC arc bending machine standard.
1. Suitable for bending and arc processing of various metal profiles or special-shaped profiles (aluminum alloy door and window profiles, insulated bridge profiles).
2. The machine adopts an industrial computer control system and specialized bending software for simple, convenient, and accurate positioning.
3. It can perform system compensation based on the rebound data of the profile, with high processing accuracy.
4. The operation screen adopts a 21 inch display screen (easy to use): using the German Rexroth hydraulic system; The oil cylinder sealing ring is an imported seal (with a long service life): This machine has been equipped with 46 # wear-resistant hydraulic oil before leaving the factory, and its product performance meets the standards of advanced European CNC bending machines
5. The top axis movement trajectory is a straight "I" - shaped structure (moving smoothly), and this machine is equipped with an anti tilt bracket to prevent the axis from tilting; The overall sheet metal of the equipment is anti-static spray painted, and the frame is made of galvanized pipe welded without rusting.Power supply 600/450/380V/220/50HZ/60HZ Input power 11.6KW（energy efficiency） Working pressure 0.2Mpa Min. diameter of bending 100mm Max. width of profile H300×W200 Max. diameter of rolls 300mm Lower shaft center-diamensions 550mm-850mm Hydraulic cylinder pressure 40T Roller-holding shaft diameter 82mm（40 chromium） Rotation speed of shaft 1-15r/min Y-roller cylinder positioning accuracy ±0.02mm Max. Y-roller travel 0-220mm Torque 9900N Size of machine 1900*1500*1700mm Weight of machine 2500kg Device Configuration
1 Control system: industrial computer 4.0
2 Fifteen-inch display
3 Hydraulic system: Bosch Rexroth
4 Reducer:: Taiwan Emerson
5 Grating ruler: Guangzhou Xinhe, domestic famous brand
6 Electrical components: France Schneider
7 Detection switch and limit switch: Taiwan Jiazhun
Aluminum window door profile：
1. Suitable for Suitable for bridge aluminum, aluminum-plastic aluminum profiles, aluminum wrapped wood, curtain walls, frame materials and other profiles that can be bent forward and sideways
2. Can be bent in U/C/S. circular, elliptical, square, spiral, irregular and other shapese aluminum, aluminum-plastic aluminum profiles, aluminum wrapped wood, curtain walls, frame materials and other profiles that can be bent forward and sideways Can be bent in U/C/S. circular, elliptical, square, spiral, irregular and other shapes
Automotive aluminum profile：
Suitable for bending profiles such as car bumpers, RV windows, dynamic door profiles, electric vehicle frames, and truck glass grooves.
Bending machine:
Bending machine Can bend U-shaped, C-shaped, S-shaped, circular, elliptical, multi radius forming, etcBending machine suitable for bending aluminum profiles, PVC, UPVC, and stainless steel profiles
Packaging and Shipping
In the whole order process, fully cooperate with there quiremenls of customers.We can support your special requirements, such
as packing, loading.coating,free samples and so on.
We have CE ISO certification
There are still many professional certificates available I participate in various exhibitions every yearFAQ:
1. Q: Are you a manufacturer or trading company?
A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.
2. Q:Where is the nearest airport to your company?
A: JINAN Airport.
3. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Pipe Outdiameter Range
- Wall thickness range
- Bending Radius Value
- The pipe material
- Bends Number on one pipe
- The drawings if possible
4. Q: What certificate do you have?
A: We have both ISO and CE certificate.
5. Q:How about your service?
A: Before Sales Serive:
1. We will help our customer confirm the right model according to the offered pipe inforamtion.
2. Welcome to visit our factory to see our machine and our workshop before you place an order.
